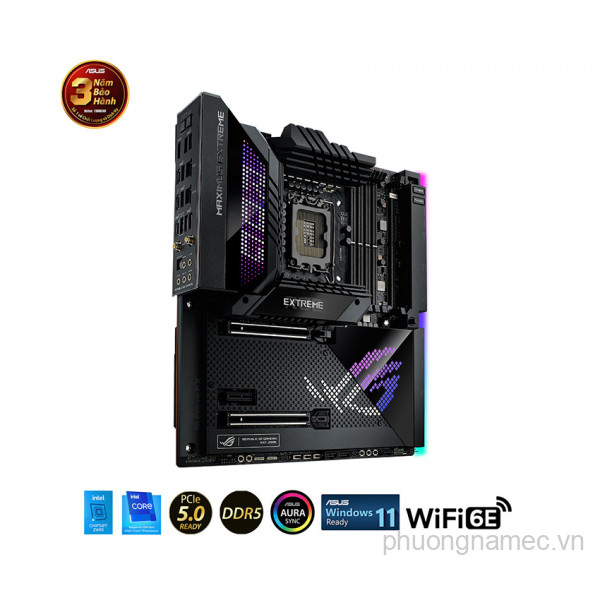

Mainboard ASUS ROG MAXIMUS Z690 EXTREME (DDR5)

CPU

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*

Refer to www.asus.com for CPU support list.

Chipset

Intel® Z690 Chipset

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*

Graphics

2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs

Expansion Slots

ntel® 12th Gen Processors*

2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**

Intel® Z690 Chipset***

1 x PCIe 3.0 x1 slot

Storage

Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports

Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110***

- Intel® 12th Gen processors support PCIe 5.0 x4 mode.

M.2_2 slot (Key M), type 2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® Z690 Chipset**

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)

DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

6 x SATA 6Gb/s ports****

Ethernet

1 x Intel® 2.5Gb Ethernet

1 x Marvell® 10Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Intel® Wi-Fi 6E

USB

Rear USB:Total 10 ports

1 x Thunderbolt™ 4 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)

Front USB:Total 10 ports

1 x Thunderbolt™ 4 connector (1 x USB Type-C®)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- ESS® SABRE9018Q2C DAC/AMP

- LED-illuminated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

Back Panel I/O Ports

1 x Thunderbolt™ 4 USB Type-C® port

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)

1 x HDMI® port

1 x ASUS Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

1 x Marvell® AQtion 10Gb Ethernet port

5 x LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Intrernal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

2 x 4-pin Radiator Fan headers

2 x W_PUMP+ headers

1 x WB_SENSOR header

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector

Storage related

3 x M.2 slots (Key M)

1 x DIMM.2 slot supports 2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x Intel® Thunderbolt™ 4 port (USB Type-C®)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers

1 x Addressable Gen 2 header

1 x AURA RGB header

1 x BIOS Switch button

2 x BCLK button

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

1 x Osc sence header

12 x ProbeIt Measurement Points

1 x ReTry button

1 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Start button

1 x V_Latch switch

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Special Features

Extreme OC Kit

- FlexKey button

- LN2 Mode

- Probelt

- ReTry button

- Safe boot button

- Start button

- Slow Mode

Extreme Engine Digi+

- 10K Black Metallic Capacitors

- MicroFine Alloy Choke

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- Steel backplate

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- Clear CMOS button

- CPU Socket lever protector

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- ROG AURA sync backplate

- AURA RGB header(s)

- Addressable Gen 2 header(s)

Dual BIOS

OLED 2"

Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support

- Support: up to 60W charging*

- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

ASUS HYDRANODE

- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)

* Visit ASUS Website for the latest compatibility list.

Software Features

ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- ROG True Voltician

- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS® Sound Unbound

- BullGuard Internet Security (1-year full version)

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (1 year full version)

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise Cancelation

- OLED Display

- AniMe MatrixTM LED Display

AI Suite 3

- Easy Optimization with AI Overclocking

TPU

EPU

DIGI+ Power Control

Turbo app

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

MemTest86

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables

1 x 1-to-3 ARGB splitter cable

1 x 1-to-2 ARGB splitter cable

2 x 1-to-4 fan splitter cables

1 x RGB extension cable

3 x ROG weave SATA 6G cables

4 x SATA 6Gb/s cables

1 x 3-in-1 Thermistor cables pack

ROG Fan Controller

1 x ROG Fan Controller

1 x Fan EXT PWR cable

1 x ARGB input cable

1 x USB input cable

1 x ROG Fan Controller 3M Mounting tape

1 x Fan Controller manual

ROG DIMM.2 with Heatsink

1 x ROG DIMM.2 with heatsink

1 x M.2 pad for ROG DIMM.2

2 x M.2 screw package for ROG DIMM.2

ROG True Voltician

1 x ROG True Voltician

4 x cables for ROG True Voltician

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x M.2 SSD screw package

1 x Q-connector

1 x ROG CLAVIS DAC

1 x ROG graphics card holder

1 x ROG key chain

1 x ROG logo plate stickers

1 x ROG screwdriver

1 x ROG stickers

1 x ROG thank you card

1 x Thermal pad package for M.2 heatsink

Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x User guide

Form Factor

EATX

30.5cm x 27.7cm
